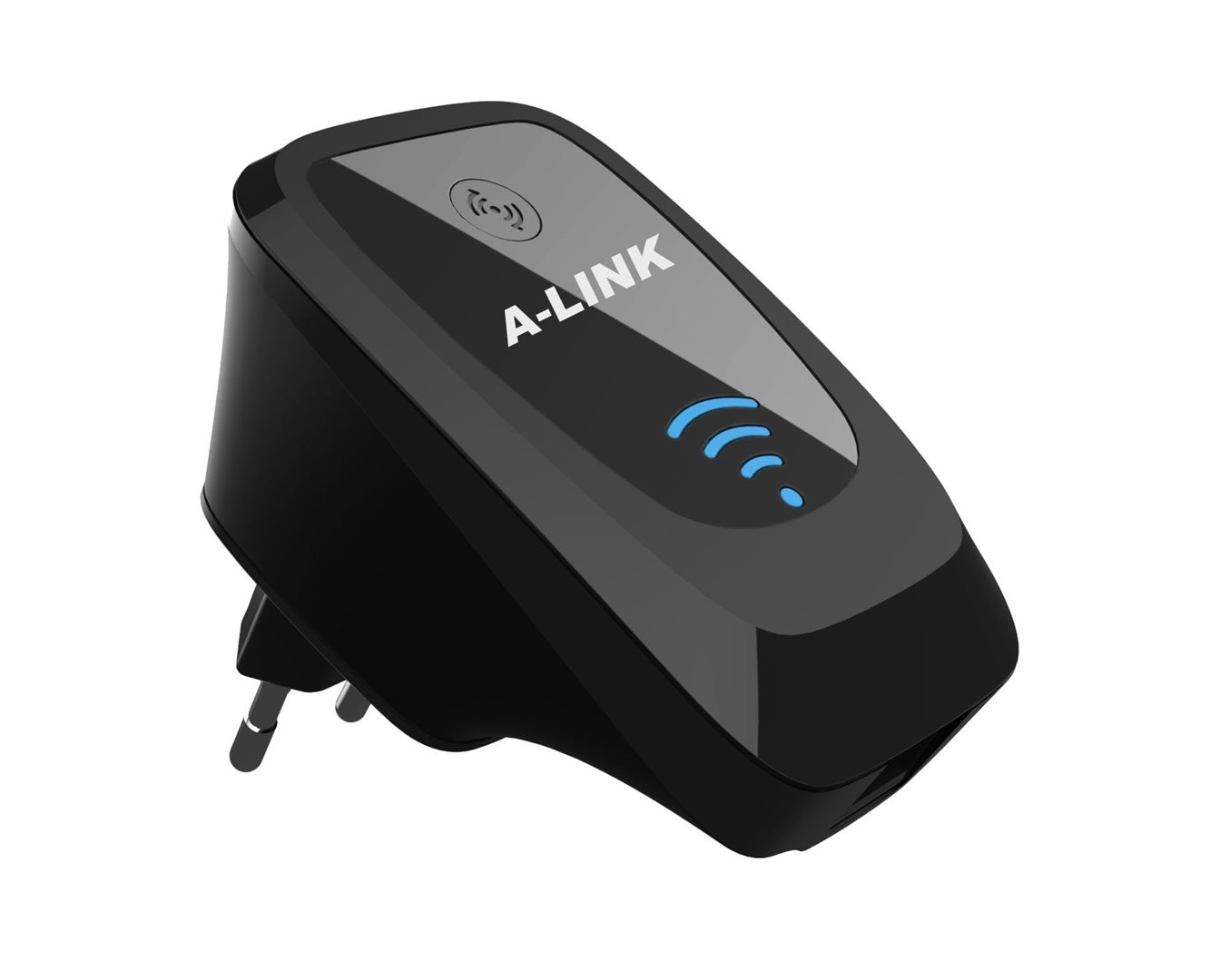

A-link wifi range extender WNR

A-link wifi range extender WNR

OVERVIEW
A-LINK WNR is 11n WLAN AP with repeater function.
You can easily get all your computers to the Internet using your existing Wireless connection and extend your Wireless network range with WNR.

SPECIFICATIONS
Standard
• IEEE 802.11n / 300Mb
• IEEE 802.11g / 54Mb
• IEEE 802.11b / 11Mb

Other Standards
• IEEE 802.11e (WMM)
• IEEE 802.3x
• IEEE 802.3u
• IEEE 802.11f (IAPP)
• IEEE 802.1x (Radius)

Frequency band
• 2.4 GHz ISM Band

Wireless data rate
• Up to 300 Mbps at 40MHz channel
• Up to 150 Mbps at 20MHz channel
• Channel / Data rate changeable
• RF output power changeable
• 2x2 MIMO technology

Wireless features
• Operation Mode AP / Client / Router / Repeater / Wisp
• Support Multible AP (5pcs)
• Network type Infastructure
• SSID broadcast (yes/no)
• MAC clone
• Universal repeater mode
• WISP

Security
• 64 bit / 128 bit WEP Encryption
• WPA (TKIP/AES) Encryption
• WPA2 (TKIP/AES) Encryption
• Radius server support
• WPS

Range
• 100-280 meters (depends on surrounding)

Receiver sensitivity
• -64dBm @ 300 Mbps
• -79dBm @ 54 Mbps
• -80dBm @ 11 Mbps

Antenna
• Internal

RF max. output power
• 14 dBm at 11n / 11g
• 17 dBm at 11b

Management
• Web based management and configuration
• Setup wizard
• Log table and remote log services
• Firmware upgradeable

Connectors
• 1pcs 10/100Mb RJ-45
• WPS button
• Reset button

LED Indicators
• PWR / LAN / WLAN /

Power
• Input AC 100~240V, 50~60Hz

Compliance
• FCC, CE, RoHS

A-LINK Retail package contains
• WNR
• Installation guide
